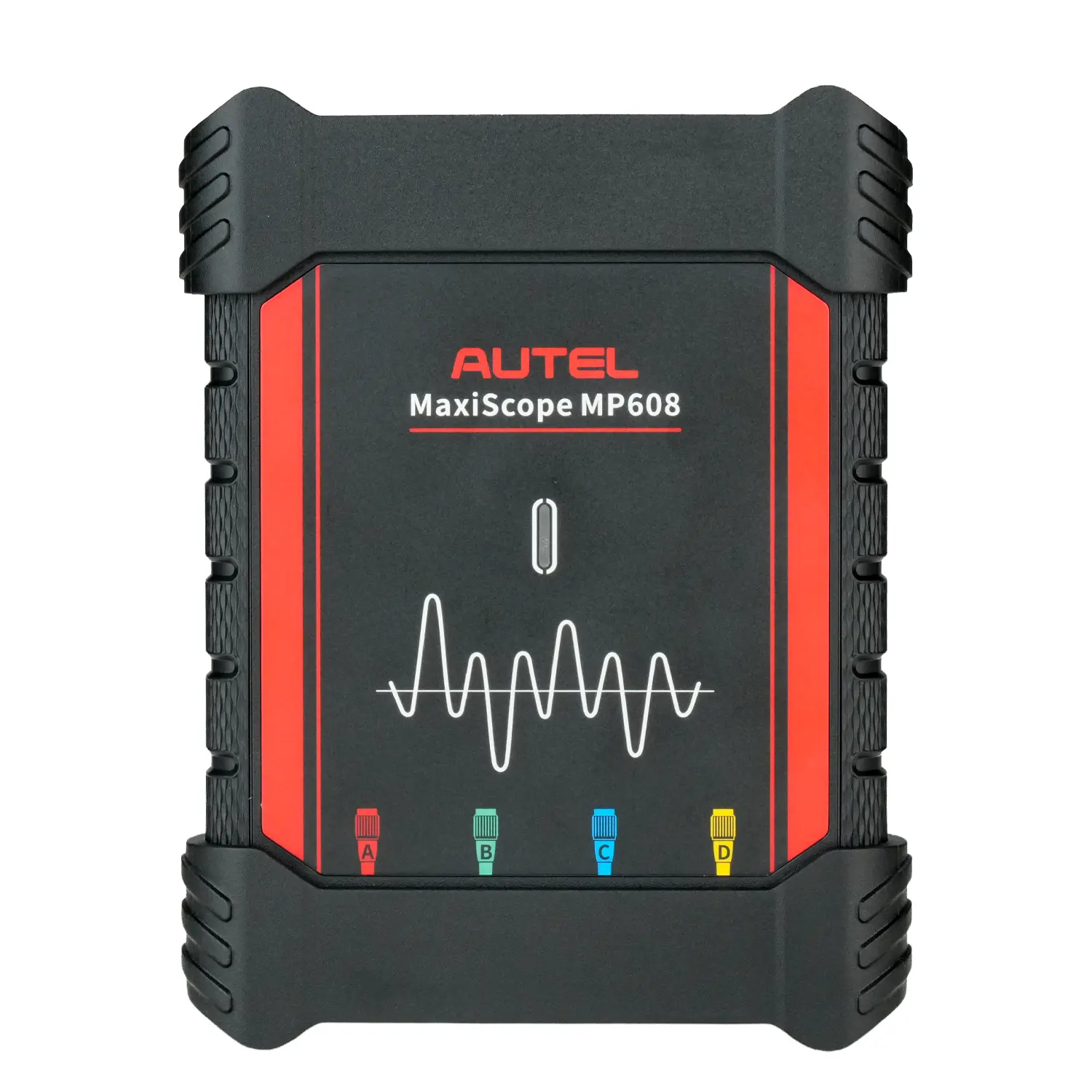

Autel MaxiScope MP608 4-Channel Automotive Oscilloscope
The Autel MaxiScope MP608 is a next-generation 4-channel automotive oscilloscope designed for professional waveform capture, intelligent diagnostics, and advanced automotive analysis. Built for technicians who need accurate signal testing and efficient fault diagnosis, the MP608 helps capture more details, analyze smarter, and collaborate better.
Professional Automotive Waveform Diagnostics
With 12-bit vertical resolution, ±1% DC accuracy, and a maximum single-shot sampling rate of up to 80 MS/s, the MaxiScope MP608 delivers clear and reliable waveform data for advanced vehicle diagnostics.
- 4-channel oscilloscope for multi-signal testing
- 12-bit vertical resolution for detailed waveform capture
- ±1% measurement accuracy for reliable diagnostic results
- 20 MHz bandwidth for automotive signal analysis
- 32M samples buffer memory for extended waveform recording
Smarter Diagnostics with AI Assistance
The Autel MP608 makes advanced oscilloscope diagnostics easier with intelligent features such as AI-generated math channel formulas, AI-generated probe parameters, and a built-in automotive case library. These tools help technicians reduce setup time and improve diagnostic confidence.
Advanced Visualization Modes
The MP608 supports multiple display modes to help users understand signals faster. Whether you are checking sensors, actuators, ignition signals, communication lines, or intermittent electrical faults, the MP608 provides the flexibility needed for professional automotive testing.
- Oscilloscope Mode
- Spectrum Mode
- XY Mode
- Simultaneous multi-view display
- Advanced measurement event table
Capture Intermittent Faults with Confidence
Intermittent electrical problems can be difficult to diagnose. The MaxiScope MP608 includes trigger actions and advanced measurement tools to help capture unstable or hard-to-reproduce vehicle faults, making it ideal for professional repair shops, diagnostic specialists, and advanced technicians.
Connected Workflow for Modern Repair Shops
The Autel MaxiScope MP608 is built for a connected diagnostic workflow. With work-order-based management, cloud synchronization, and waveform notes and tags, every test result can become a valuable diagnostic record for future reference, team collaboration, and customer reporting.
Tablet Mobility with PC-Level Analysis
The MP608 supports both tablet and PC workflows, giving technicians the flexibility to perform mobile testing in the vehicle bay while still having access to advanced PC-level waveform analysis when needed.
Key Specifications
| Channels | 4 |
|---|---|
| Vertical Resolution | 12 bits |
| DC Accuracy | ±1% |
| Sensitivity | 10mV/div to 40V/div |
| Input Range | ±50mV to ±200V in 12 ranges |
| Bandwidth | 20 MHz |
| Buffer Memory | 32M Samples |
| Maximum Sampling Rate | 1 channel: 80 MS/s; 4 channels: 20 MS/s |
| PC Interface | USB 2.0 |
| Power Requirements | Powered from USB port |
| Dimensions | 184 × 144 × 41 mm / 7.2 × 5.7 × 1.6 in |
| Weight | Approx. 560 g / 1.23 lb |
Compatible Autel Tablets
The MaxiScope MP608 is compatible with selected Autel professional diagnostic tablets, including MaxiSys, MaxiCOM, and MaxiIM series models such as MS909S2, MS909, MS908S3, MS906MAX, MS908S II, MS908S Pro II, MS906 Pro, MS906 Pro-TS, MS906 Pro2-TS, Ultra Lite, Ultra Lite S, Elite II, Elite II Pro, IM608 II, and IM608 Pro II.
Why Choose the Autel MaxiScope MP608?
- Designed for professional automotive waveform diagnostics
- Ideal for advanced electrical and intermittent fault testing
- AI-assisted setup helps simplify oscilloscope operation
- Supports connected workflow with cloud sync and waveform tagging
- Works with tablet and PC for flexible shop diagnostics
